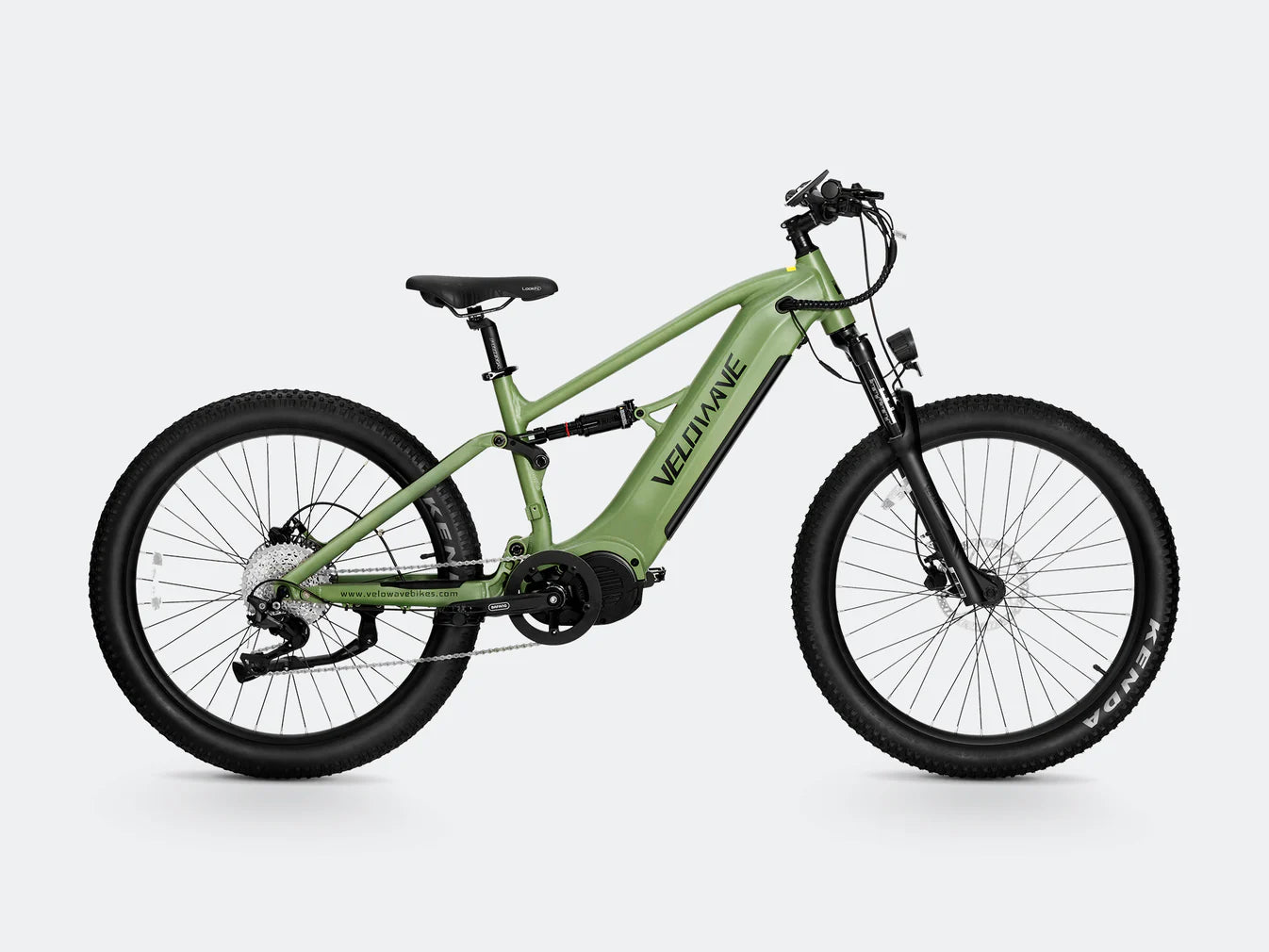

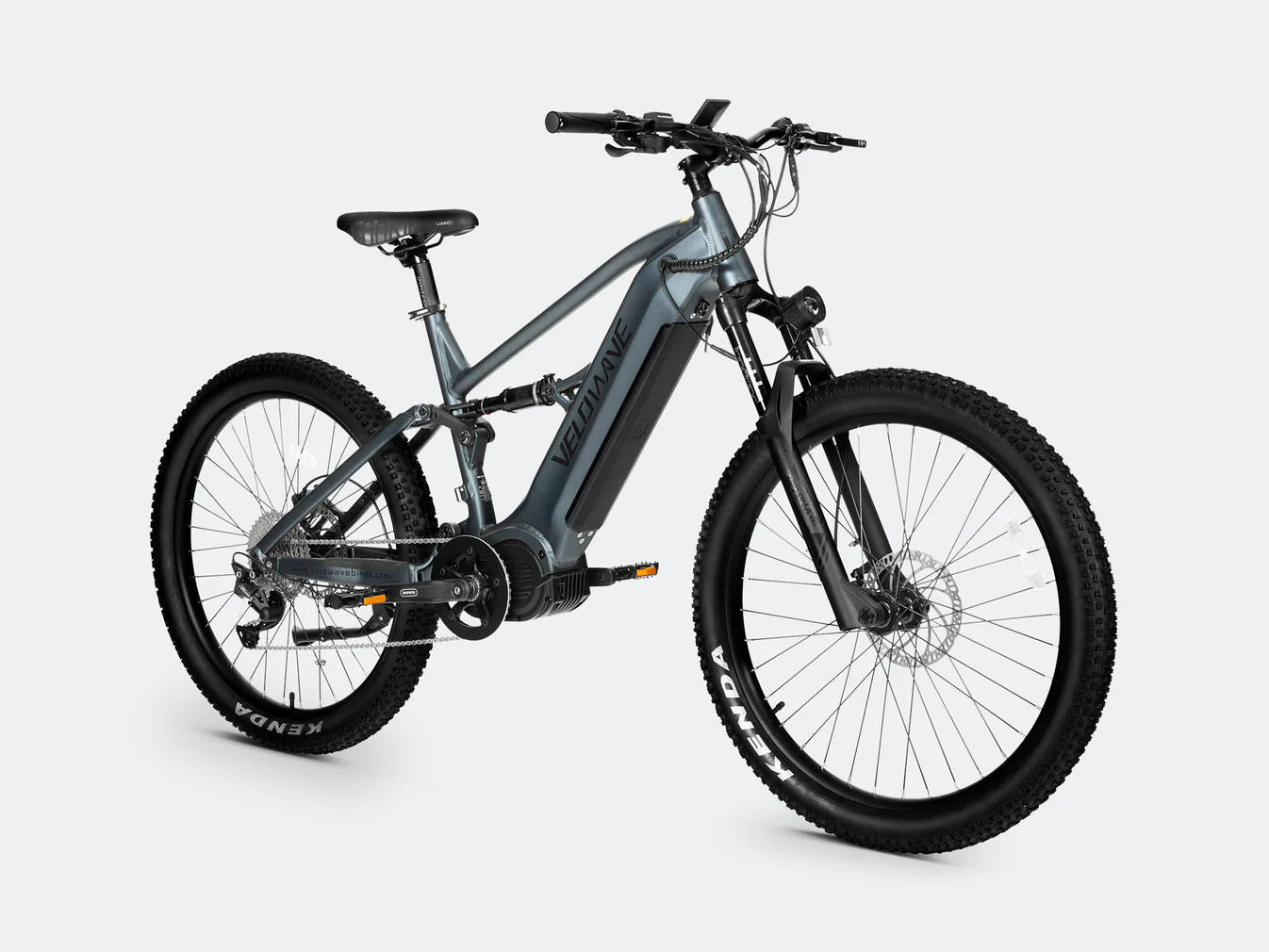

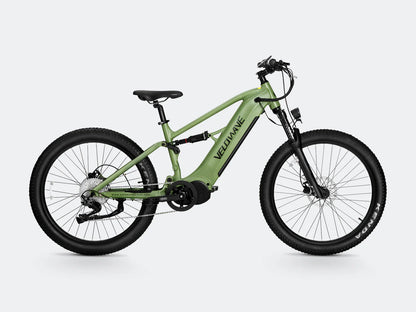

🌲 Forest XM Electric Full-Suspension Mountain Bike
Smooth the Ride. Conquer the Wild.
If you're tired of bouncing off gravel, potholes, or uneven trails, the Forest XM is your answer. This high-performance, full-suspension electric mountain bike is designed to absorb the terrain—not punish you for it. Crafted from premium 6061 Aluminum Alloy, it features a fully integrated battery, a sleek design, and advanced front and rear suspension with 133mm of frame travel for unmatched comfort and control.
Whether you're climbing rugged trails or cruising backroads, the Forest XM gives you the power, precision, and plushness to ride farther, faster, and smoother.
🔥 Top Features
⚡ 1000W Torque-Rich Motor (Peak 1200W)
Packed with 160Nm of torque, this beast climbs hills effortlessly and powers through off-road conditions with ease.
🔋 Long-Range 48V 20Ah LG Battery (960Wh)
Enjoy up to 85 miles on pedal assist or 60 miles on throttle—recharge less, explore more.
🧠 Smart Torque Sensor + 6 PAS Levels
Experience real-time responsiveness that matches your pedaling style with natural-feeling, ultra-efficient power delivery.
🛞 Air Suspension System
Front: 140mm air fork with lockout
Rear: RockShox RS-MNR-R-C4 air spring (44mm travel)
Together they soak up shocks and bumps for an incredibly smooth ride.
🦾 Built for All Terrain
With 27.5” x 2.8” Kenda fat tires, you’ll enjoy the perfect mix of traction, agility, and comfort whether you're ripping singletrack or rolling city streets.
💡 Integrated Lighting System
A 48V LED headlight (80 LUX) and rear blinking light powered by the main battery keep you safe and seen during night rides.
📊 Forest XM Specifications
⚙️ General
| Feature | Spec |
|---|---|
| Top Speed | 28 MPH (PAS) / 20 MPH (Throttle) |
| Range | Up to 85 miles (PAS) / 60 miles (Throttle) |
| Pedal Assist | 6 Levels |
| Sensor | Torque Sensor |
🧱 Frameset
| Component | Spec |
|---|---|
| Frame | 6061 Aluminum Alloy w/ Integrated Battery |
| Front Fork | Air Suspension, 140mm Travel, Lockout |
| Rear Suspension | RockShox RS-MNR-R-C4, 44mm Travel |
🛞 Wheels & Tires
| Component | Spec |
|---|---|
| Tires | Kenda 27.5” x 2.8” |
| Rims | Aluminum 27.5” 36H |
| Spokes | Black Stainless, 13G |
⚡ E-System
| Component | Spec |
|---|---|
| Battery | 48V 20Ah LG Cells (960Wh), Removable |
| Motor | 1000W (Peak 1200W), 160Nm |
| Charger | 48V 3A, ~7 Hours |
| Display | TFT Smart Color Display |
| Throttle | Thumb Throttle from Stop |
| Lighting | 48V LED Headlight (80 LUX), Rear Blinking Light |
🛠️ Drivetrain
| Component | Spec |
|---|---|
| Shifter | Shimano 10-Speed Thumb Shifter |
| Derailleur | Shimano Deore RD-M4120 |
| Crankset | 170mm w/ 40T |
| Cassette | Shimano 11-42T |
| Chain | KMC 134 Link, 10-Speed |
🧩 Components
| Component | Spec |
|---|---|
| Saddle | Wide Comfort Saddle |
| Seatpost | Forged Alloy Ø31.6 x 300mm |
| Handlebar | Aluminum Ø31.8mm, Width 740mm |
| Brakes | Tektro Hydraulic Disc Brakes w/ 180mm Rotors |
| Kickstand | Included |
| Fenders | Not Included |
| Rear Rack | Not Included |
📏 Size & Weight
| Measurement | Value |
|---|---|
| Bike Weight | 76 lbs (incl. battery) |
| Battery Weight | 11.4 lbs |
| Max Payload | 385 lbs |
| Bike Dimensions | 2043 x 1135 x 745 mm |
| Box Dimensions | 1700 x 300 x 830 mm |
🏁 Your Ride, Upgraded
The Forest XM is built for serious riders who crave versatility, control, and power in one beautifully engineered package. Whether you're gliding through cityscapes or tearing up trails, this bike does it all—with style.
👉 Ready to dominate the outdoors? Get the Forest XM and elevate your ride.
