🚴 Velowave Brawny XM Fat Tire Electric Bike
Conquer All Terrain. Max Out Your Ride.
Meet the Brawny XM, your go-anywhere, do-anything Class 3 electric fat tire bike built for those who crave unmatched power, ultimate comfort, and rugged performance. Whether you're tearing through sand, snow, trails, or tarmac, the Brawny XM delivers next-level stability, 139mm of full suspension travel, and an ultra-high-torque 1000W motor (peak 1200W) with 160Nm of raw torque. It's a beast — and it's built to go far.
🔥 Key Features
⚡ 1000W High-Torque Motor (Peak 1200W)
Crush hills and accelerate fast with a 160Nm torque powerhouse, delivering high performance across all terrains.
🔋 48V 20Ah LG Lithium-Ion Battery (960Wh)
Get up to 85 miles on pedal assist and 60 miles with throttle-only. The removable internal battery lets you recharge anywhere with ease.
🧠 Torque Sensor + 6-Level Pedal Assist
Enjoy buttery-smooth power delivery that matches your pedal input in real-time for precision, efficiency, and natural riding feel.
💨 Class 3 Performance
Reach speeds of up to 28 MPH with pedal assist or 20 MPH with throttle. Ideal for both adventure rides and high-speed commutes.
🛞 26” x 4.8” Kenda Fat Tires
Massive, grippy, and ready to roll. Tackle sand, snow, gravel, or city streets with unbeatable traction and control.
💺 139mm Full Suspension Travel
Equipped with a RockShox rear air spring (44mm travel) and air suspension front fork (100mm travel) for supreme shock absorption and comfort.
🛑 Tektro Hydraulic Disc Brakes
Ride confidently with front and rear 180mm hydraulic disc brakes featuring motor cut-off safety for fast, reliable stopping power.
💡 Integrated LED Lighting System
Ride safely day or night with a 48V high-intensity front headlight (80 LUX) and a rear blinking brake light, all powered by the main battery.
📊 Specifications
⚙️ General
| Category | Specs |
|---|---|
| Class | Class 3 (Up to 28 MPH pedal assist) |
| Top Speed | 28 MPH (PAS) / 20 MPH (Throttle) |
| Range | Up to 85 miles (PAS) / 60 miles (Throttle) |
🧱 Frameset
| Component | Details |
|---|---|
| Frame | 6061 Aluminum Alloy, Internal Battery, Full Suspension |
| Front Suspension | Air Fork, 100mm Travel w/ Lockout |
| Rear Suspension | RockShox RS-MNR-R-C4, 44mm Air Spring w/ Rebound Adj. |
🛞 Wheels & Tires
| Component | Details |
|---|---|
| Rims | 26" Aluminum, 36H |
| Tires | Kenda 26" x 4.8" Fat Tires |
| Hubs | Front/Rear Nutted Disc Axles |
| Spokes | Black Stainless, 13G Front/Rear |
⚡ E-System
| Component | Details |
|---|---|
| Battery | 48V 20Ah (960Wh) LG Cells, Removable |
| Motor | 1000W Brushless (Peak 1200W), 160Nm |
| Sensor | Torque Sensor |
| Display | TFT Full-Color Smart Display with Backlight |
| Charger | 48V 3A, 7-Hour Charging Time |
| Throttle | Thumb Throttle (Start from Stop) |
| Lights | 48V Front LED (80 LUX), Rear Blinking Brake Light |
⚙️ Drivetrain
| Component | Details |
|---|---|
| Shifter | Shimano 10-Speed Thumb Shifter |
| Cassette | Shimano 11-42T, 10-Speed |
| Derailleur | Shimano Deore RD-M4120, 10-Speed |
| Crankset | 170mm w/ 48T |
| Chain | KMC 134 Link |
🧩 Components
| Component | Details |
|---|---|
| Brakes | Tektro Hydraulic Disc w/ 180mm Rotors |
| Handlebar | Aluminum Ø31.8mm x 740mm Width |
| Saddle | Wide Comfort Saddle |
| Grips | Ergonomic Lock-On |
| Seatpost | Forged Alloy, Ø31.6 x 300mm |
| Stem | 60mm, Rise 6°, Clamp Ø28.6mm |
| Kickstand | Rear Mount, Included |

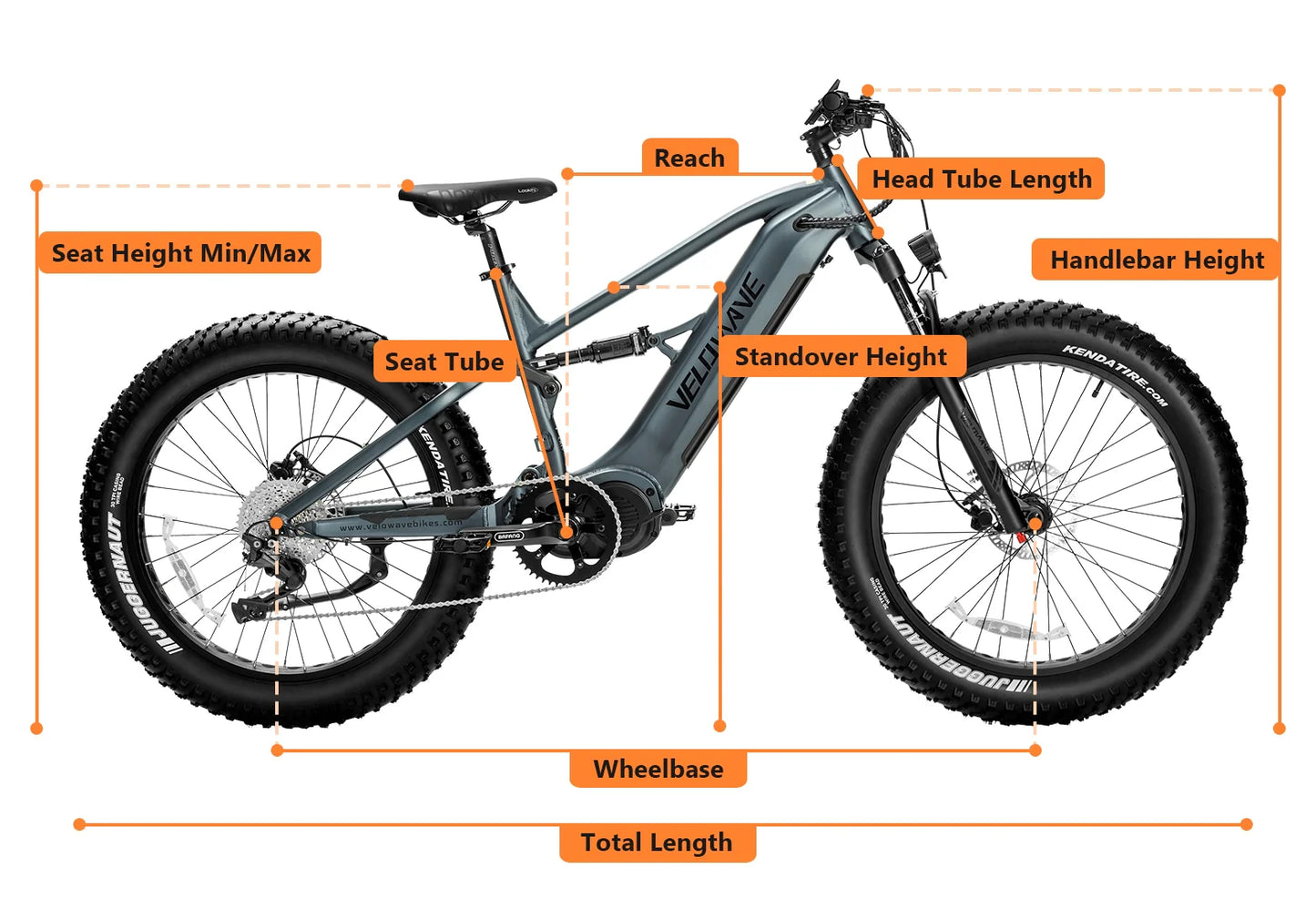

📐 Sizing & Weight
| Specification | Value |
|---|---|
| Rider Height | 5'4" – 6'5" |
| Max Payload | 385 lbs (Rider + Cargo) |
| Bike Weight | 82 lbs |
| Battery Weight | 11.4 lbs |
| Shipping Weight | 111 lbs |
| Product Dimensions | 2100 x 1158 x 745 mm |
| Box Dimensions | 1700 x 350 x 900 mm |
🏁 Ready for Anything
The Brawny XM isn’t just a fat tire electric bike—it’s an all-terrain performance machine. Perfect for backcountry trails, beach rides, winter commutes, or heavy-duty hauls, this is your ultimate tool for freedom on two wheels.
